Order Independant Transparency

The Issue

If you play a bit with translucent contraptions, you might encounter the following scenario:

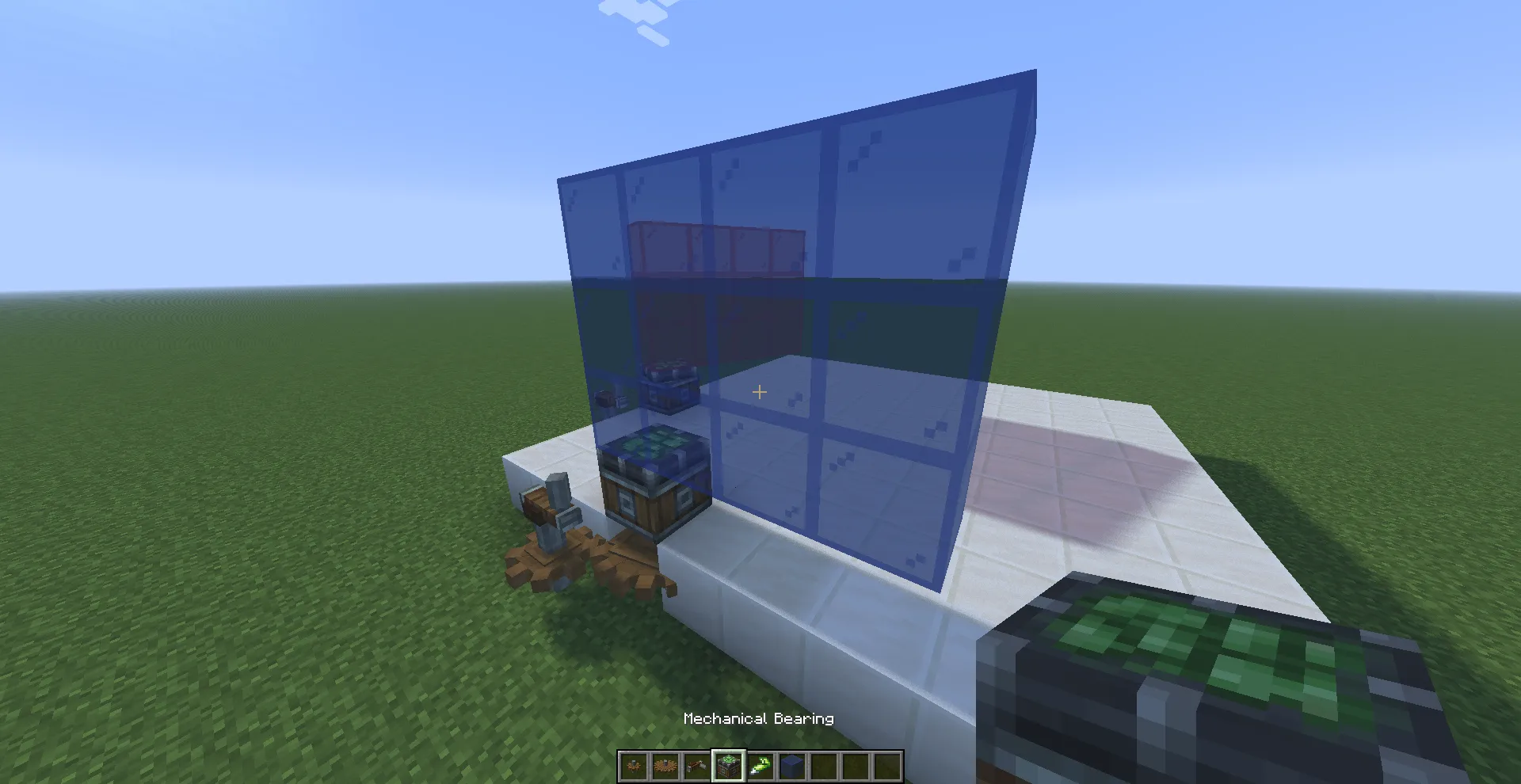

Yay, it works !

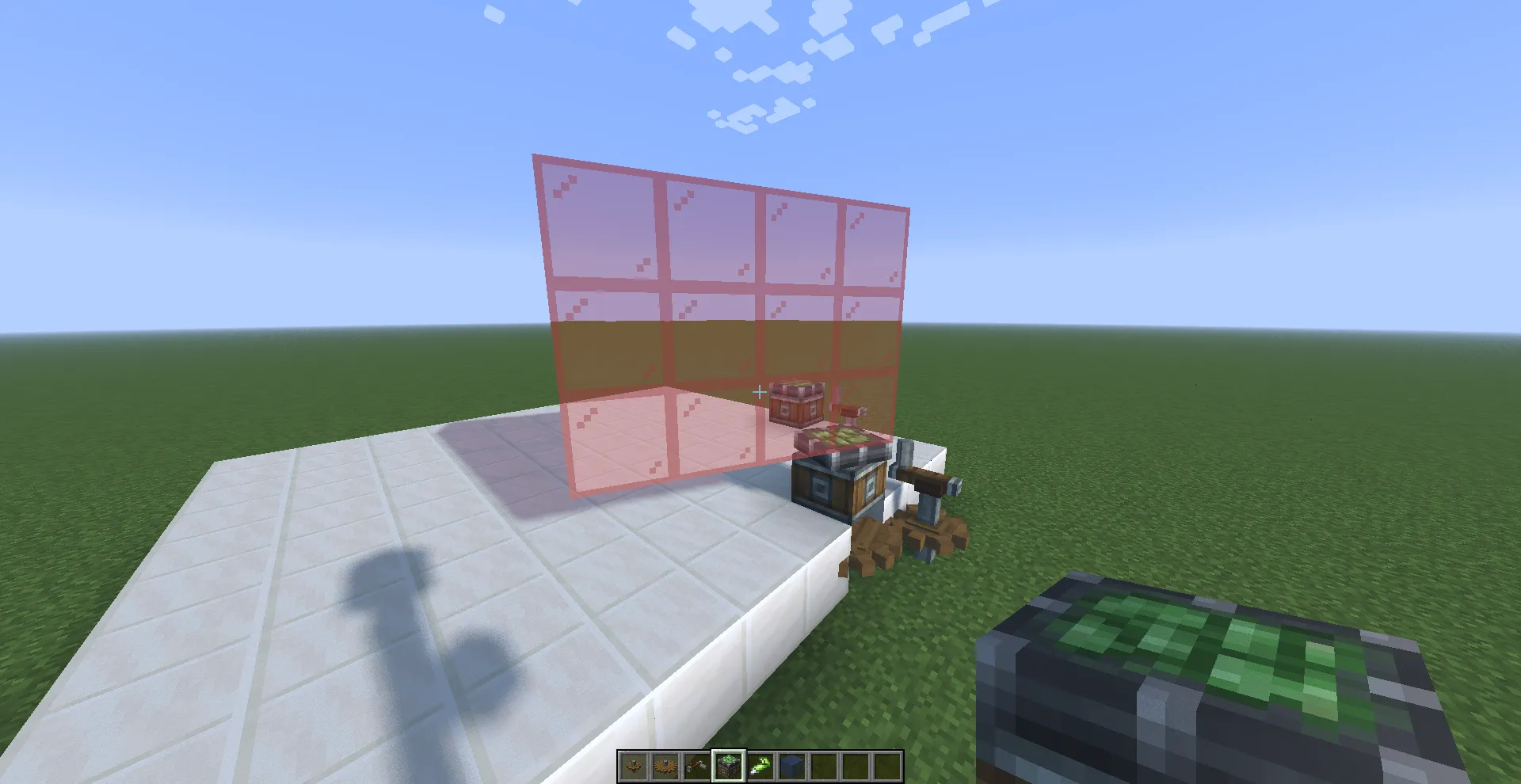

Boo, it doesn’t work !

The issue arises because translucent geometries are not sorted: the red glass is rendered first, followed by the blue glass. This works in the first scenario because the red glass is behind the blue glass, but it fails in the second scenario as the red glass occludes the blue glass.

The typical solution to this issue is to sort geometries back-to-front relative to the camera, which is the method used by Iris. However, Flywheel does not sort translucent geometries. Instead, it uses Order Independent Transparency (OIT), which, as the name suggests, does not require geometries to be ordered on the CPU first.

Warning

Before proceding, you should read the explanation of What is Order Independant Transparency ?.

Setup

By default, OIT is disabled and translucent geometries are rendered in whatever order (this is our current situation). To enable it, we must create the colorwheel.properties file and add the following line:

oit = true

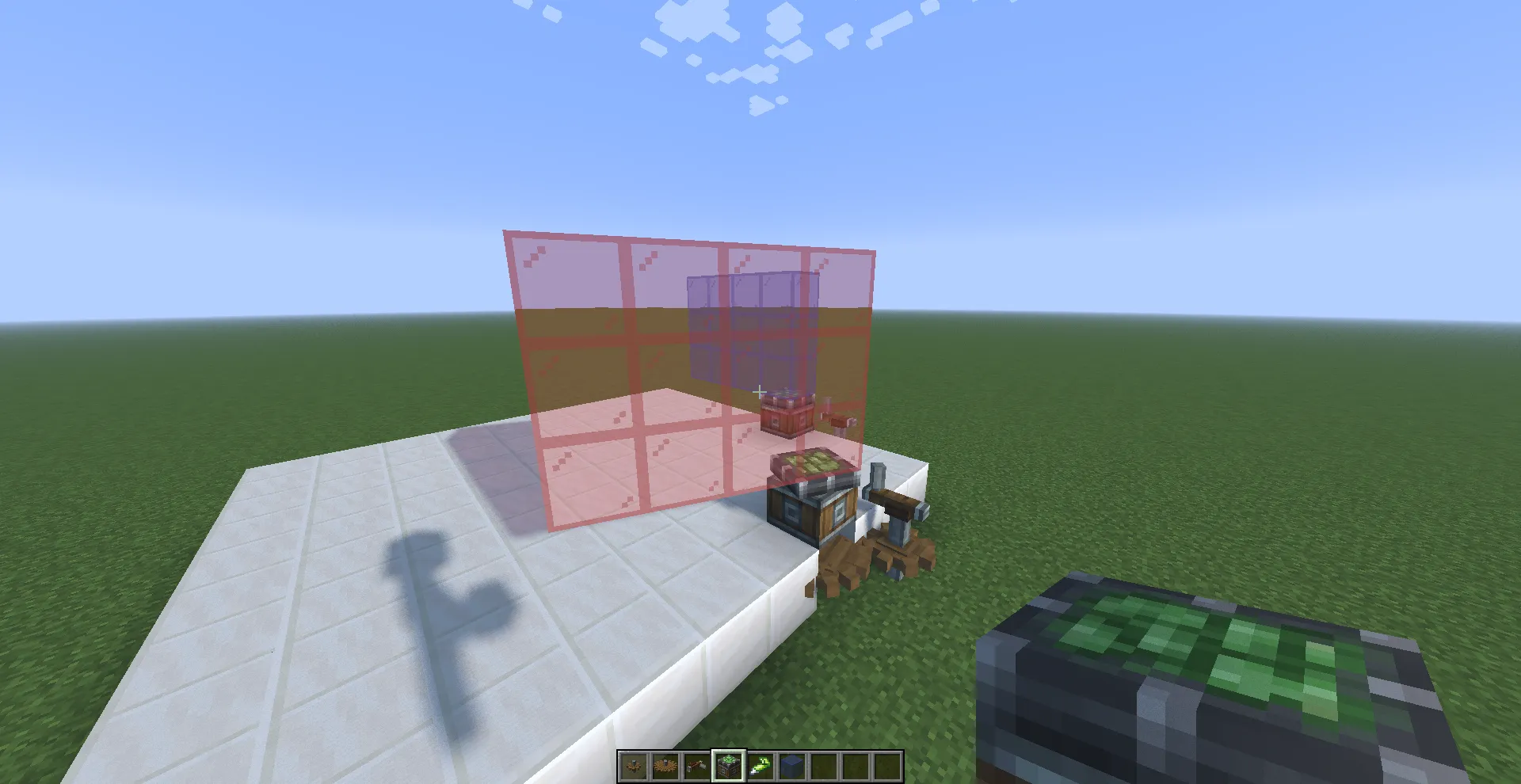

This will enable OIT for both the gbuffers and shadow render passes. If we reload, we now have:

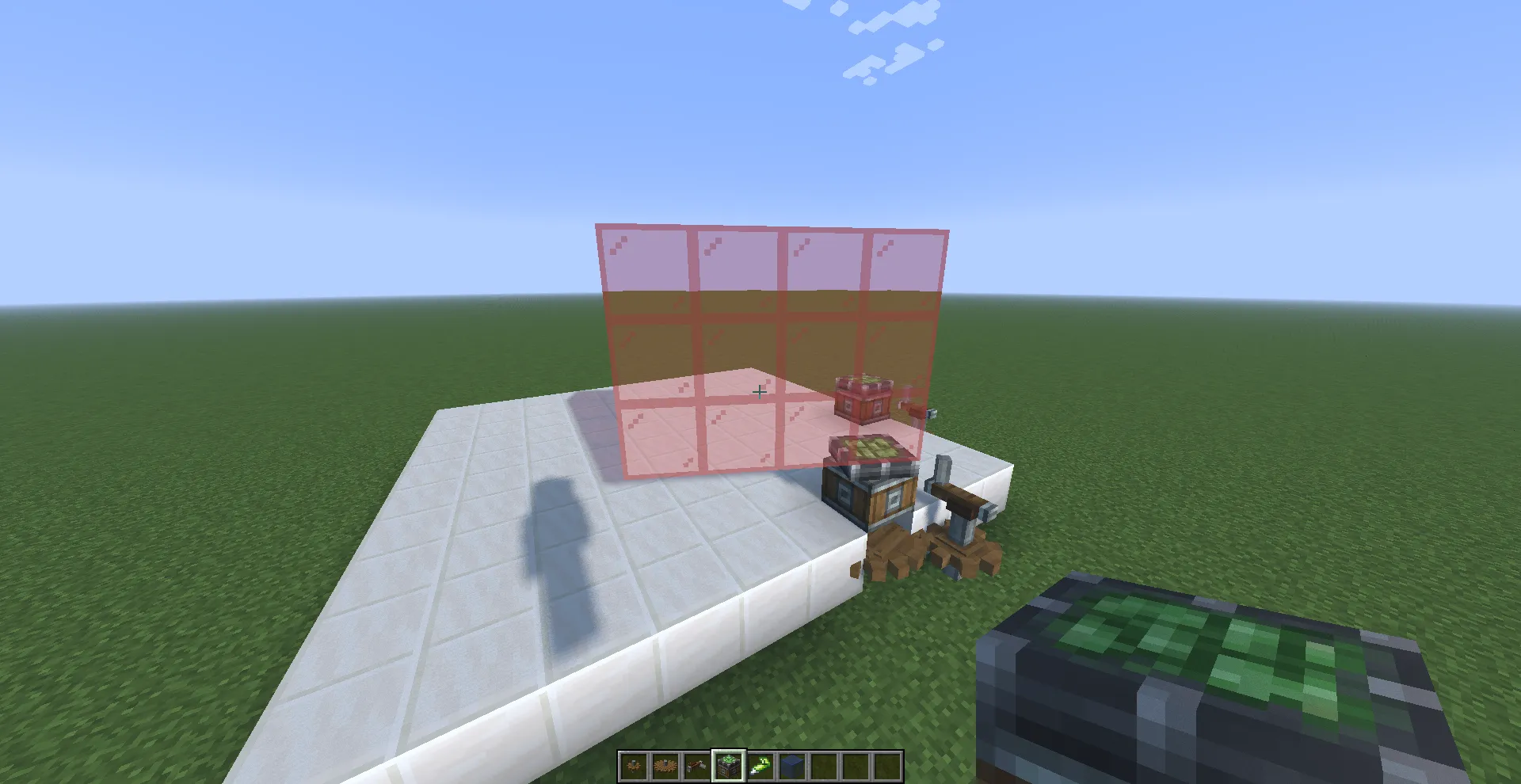

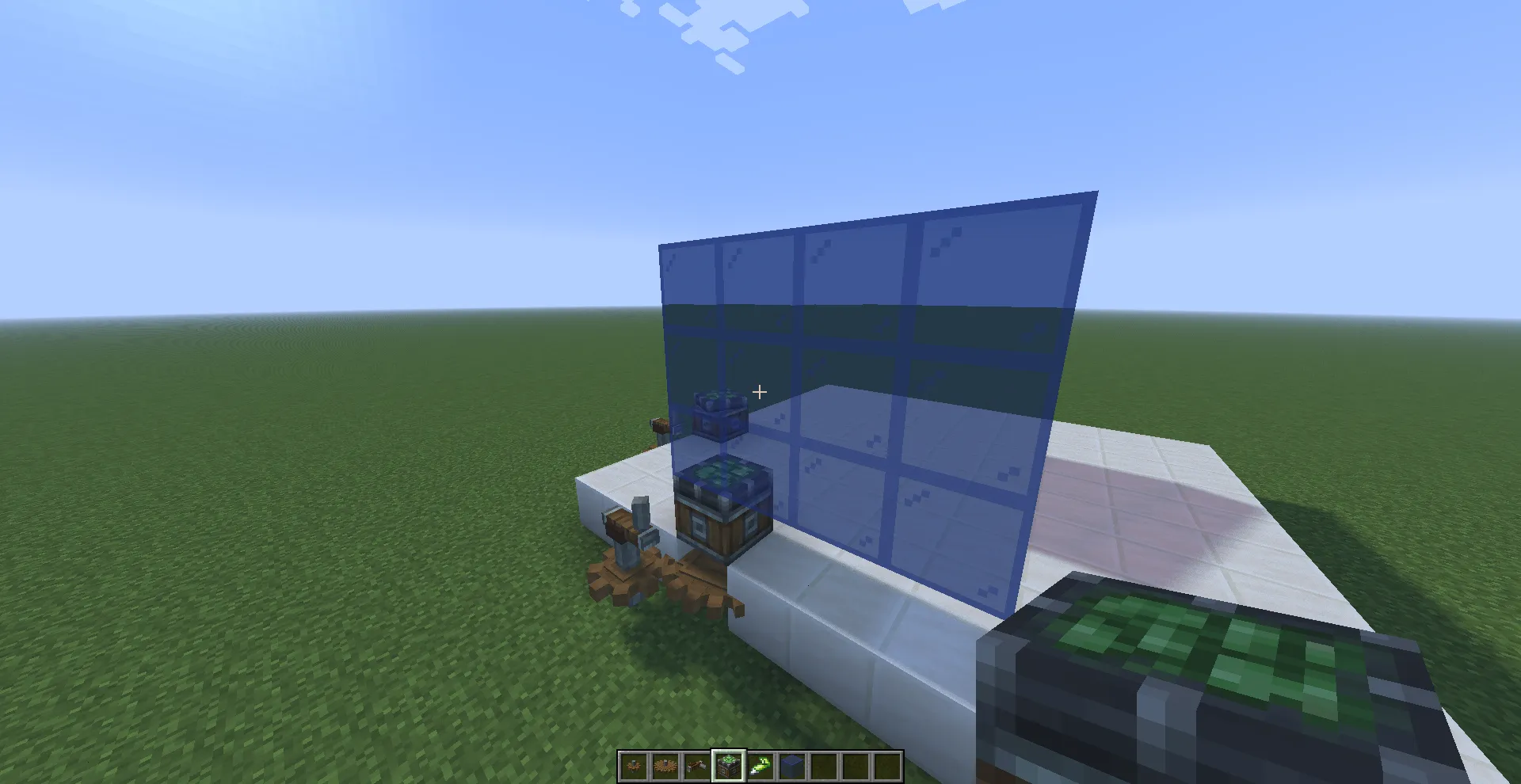

It’s even worse than before !

If you recall the OIT explanation, it is mentioned that, by default, all buffers are treated as frontmost. This means that only the translucent fragments closest to the camera will be rendered, which is our current situation. We now need to properly configure the OIT.

Gbuffers

Let’s do the inventory of our colortex used in clrwl_gbuffers with their alpha value:

• colortex0: RGB16, blending enabled, alpha may vary.
• colortex1: RGBA8, blending enabled, alpha set to 1.0.
• colortex2: RGBA8, blending enabled, alpha set to 1.0.

The frontmost mode has to be used in two cases:

• When the alpha value is always 1.0 (the fragment is opaque).
• When the buffer written to has its blending disabled.

For non opaque fragment with blending enabled, we have to assign a coefficient buffer to generate and use the appropriate transmittance-over-depth function.

Tip

If multiple buffers share the same alpha value, you can reuse the same coefficients buffer. This significantly reduces memory usage.

In summary:

• colortex0 is non opaque with blending enabled: declare and assign a coefficient buffer.
• colortex1 and colortex2 are opaques: set them to frontmost.

We can also assign more suitable image formats to colortex1 and colortex2 than the default RGBA16F, as we don’t need the default 16-bit precision.

Note

If you’re using one or two coefficients buffers, just use rank 3. In rare cases where more buffers are needed, you will have to reduce the ranks as you will reach the maximum framebuffer attachments on some systems.

oit = true

oit.gbuffers.coefficientRanks = 3

oit.gbuffers.colortex0 = 0

oit.gbuffers.colortex1 = frontmost
oit.gbuffers.colortex1.format = RGBA8

oit.gbuffers.colortex2 = frontmost
oit.gbuffers.colortex2.format = RGBA8

Warning

When changing the default format used, make sure to assign a format with an alpha channel.

Tip

If your’re dealing with a deferred rendering pipeline, where managing translucency is more challenging, a compromise is to set all buffers to frontmost. This ensures that the final render is acceptable and allows you to achieve “good enough” tier results.

Shadow

The easiest way to handle shadows is to set all buffers to frontmost. This will match current behavior (as blending is disabled in the shadow pass by default), and the shadow color will be determined by the geometry closest to the sun/moon. This will also require less GPU work and less GPU memory compared to a fully utilized OIT.

oit.shadow.shadowcolor0 = frontmost
oit.shadow.shadowcolor0.format = RGBA8

Warning

In typical usage, it’s common to omit RENDERTARGETS or DRAWBUFFERS in shadow. However, Colorwheel relies on these directives to identify which buffers are used. If they are not specified, it will default to only shadowcolor0. Always specify one of these directives when shadowcolor1 is used.

#version 330 compatibility

uniform sampler2D gtexture;

in vec2 texcoord;
in vec4 glcolor;

/* RENDERTARGETS: 0 */
layout(location = 0) out vec4 color;

void main() {
  color = texture(gtexture, texcoord);
  vec2 lmcoord;
  float ao;
  vec4 overlayColor;

  clrwl_computeFragment(color, color, lmcoord, ao, overlayColor);
}
