Programs

Gbuffers

The clrwl_gbuffers program is most important one, as Colorwheel will reject any shaderpack without it. You don’t have to reinvent the wheel to create it, you may repurpose one of your existing program. In general, gbuffers_blocks serves as a good foundation. For this tutorial, I’ll use gbuffers_terrain since the reference shaderpack doesn’t include gbuffers_blocks.

Danger

Colorwheel programs must use the compatibility profile.

Let’s copy and rename gbuffers_terrain.vsh and gbuffers_terrain.fsh to clrwl_gbuffers.vsh and clrwl_gbuffers.fsh respectively. If we launch the game and select our shaderpack, Colorwheel will no longer complain about our shaderpack being incompatible !

Tip

You can check that Colorwheel is active by running the /flywheel backend command. The result should be colorwheel:instancing.

Let’s try a few blocks from Create to test our current version.

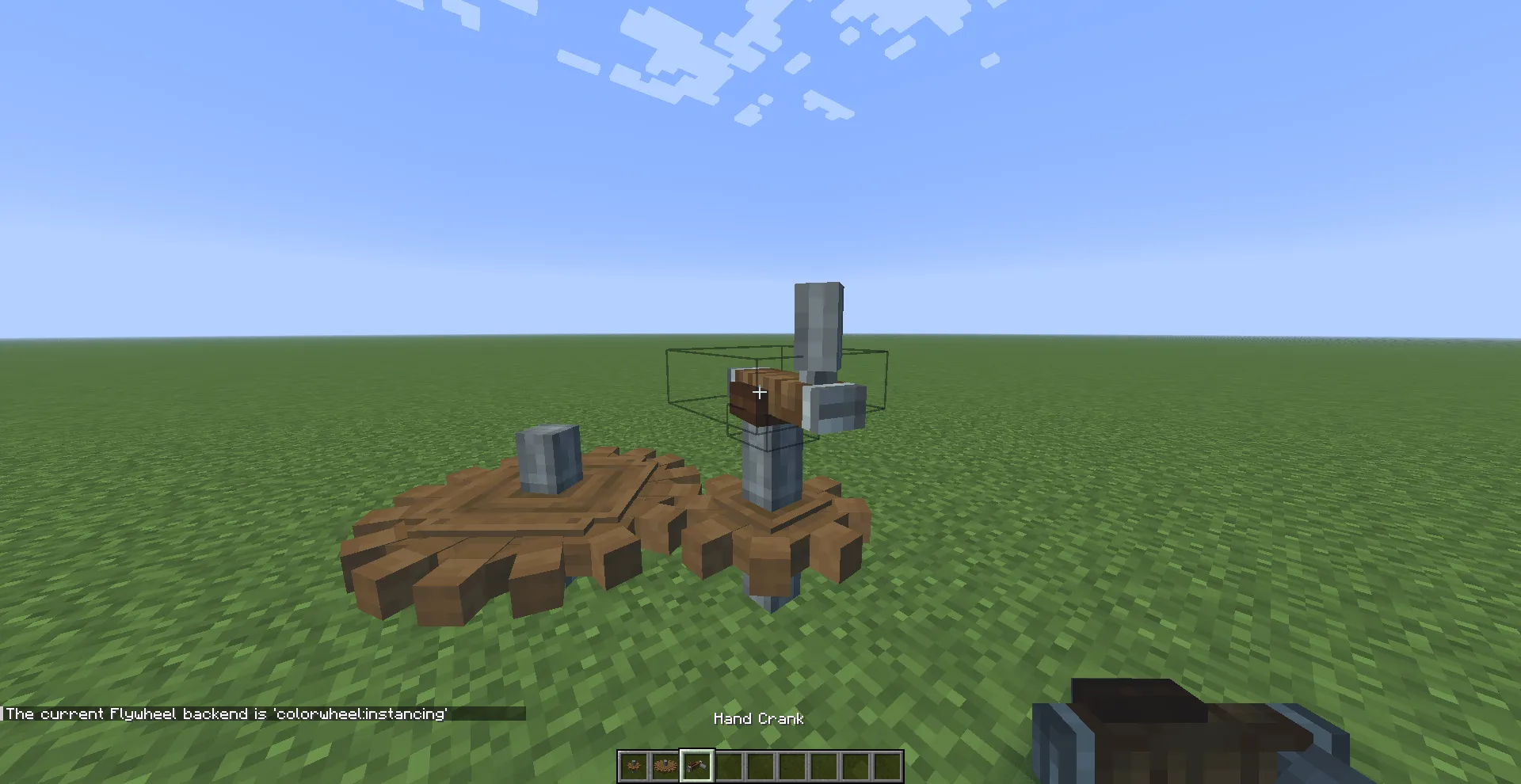

Cogwheels are rendered properly, and rotations are functioning as expected (yes I know this is a screenshot but trust me).

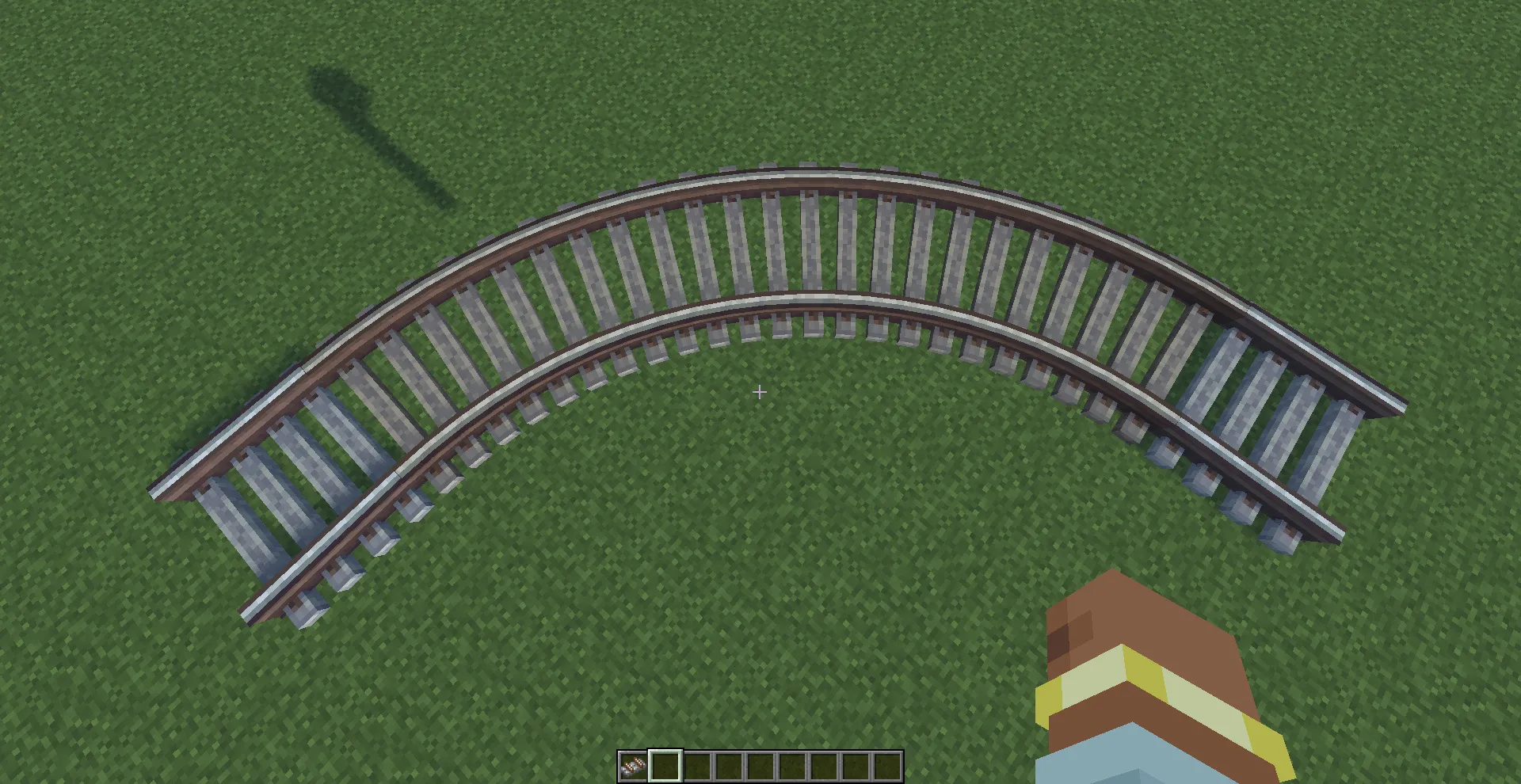

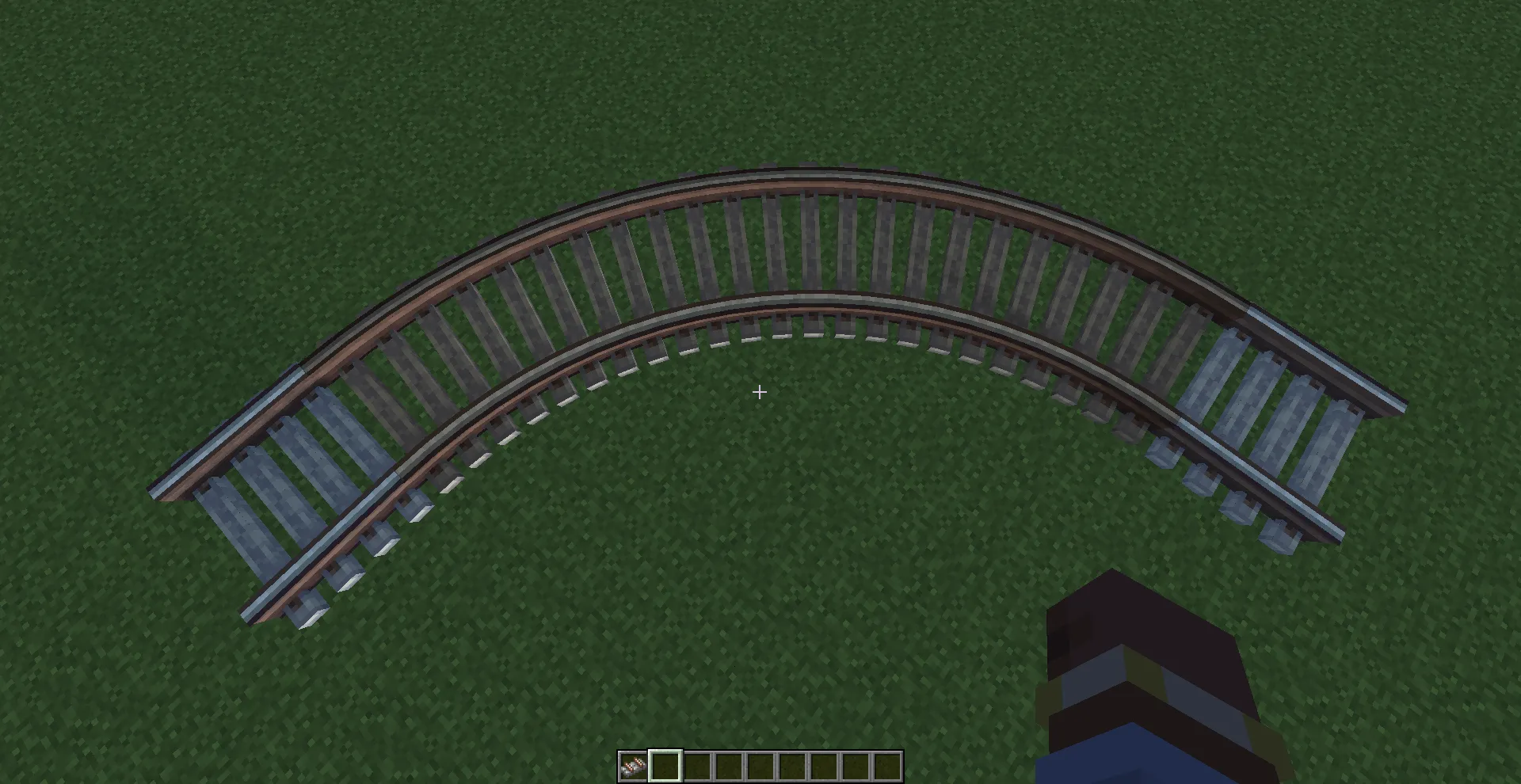

Uh, tracks are weird. Let’s try at night.

We already have the basics working, but we have some issues with the tracks. This is because we haven’t executed the material’s fragment, light and cutout shaders, which are essential.

Note

Flywheel materials also have shaders that have to be executed in the vertex stage. Those are already being executed before our shader code without us any edit on our part ! This is why the rotations are working, otherwise they would have been static.

computeFragment

Colorwheel provides a nice wrapper in the form of the clrwl_computeFragment function. It is defined as follow:

void clrwl_computeFragment(vec4 sampleColor, out vec4 fragColor, out vec2 fragLight, out float ao, out vec4 overlayColor);

It takes as input the result of texture(gtexture, texcoord) and returns:

• fragColor: the result of sampleColor * gl_Color, processed by the material’s fragment shader, with the ambient occlusion applied.
• fragLight: the lightmap value, ranging from 0.03125 to 0.96875, computed by the material’s light shader.
• ao: the ambient occlusion value.
• overlayColor: the same as Iris’s entityColor.

Tip

This should be executed as soon as possible, as having the correct values early allows you to keep the rest of your shader code intact.

Let’s fix our fragment shader.

#version 330 compatibility

uniform sampler2D lightmap;
uniform sampler2D gtexture;

 uniform float alphaTestRef = 0.1;

in vec2 lmcoord;
in vec2 texcoord;
in vec4 glcolor;
in vec3 normal;

/* RENDERTARGETS: 0,1,2 */
layout(location = 0) out vec4 color;
layout(location = 1) out vec4 lightmapData;
layout(location = 2) out vec4 encodedNormal;

void main() {
    color = texture(gtexture, texcoord) * glcolor; // biome tint
    color = texture(gtexture, texcoord);
    vec2 lmcoord;
    float ao;
    vec4 overlayColor;

    if (color.a < alphaTestRef) {
        discard;
    }
    clrwl_computeFragment(color, color, lmcoord, ao, overlayColor);
    color.rgb = mix(color.rgb, overlayColor.rgb, overlayColor.a);

    lightmapData = vec4(lmcoord, 0.0, 1.0);
    encodedNormal = vec4(normal * 0.5 + 0.5, 1.0);
}

• color is now the result of the material’s fragment shader, with the ambient occlusion applied and mixed with the overlay color.
• lmcoord is now the result of material’s light shader.
• alphaTestRef has been removed as the correct test is done using the material’s cutout shader.

But wait, how does clrwl_computeFragment know about gl_Color ?

In reality, they are more in/outs that just the four declared. The material’s shaders all requires values from the vertex stage. As such, some values are automatically sent from the vertex stage to the fragment stage. The detailed list is available on the Attributes overview page.

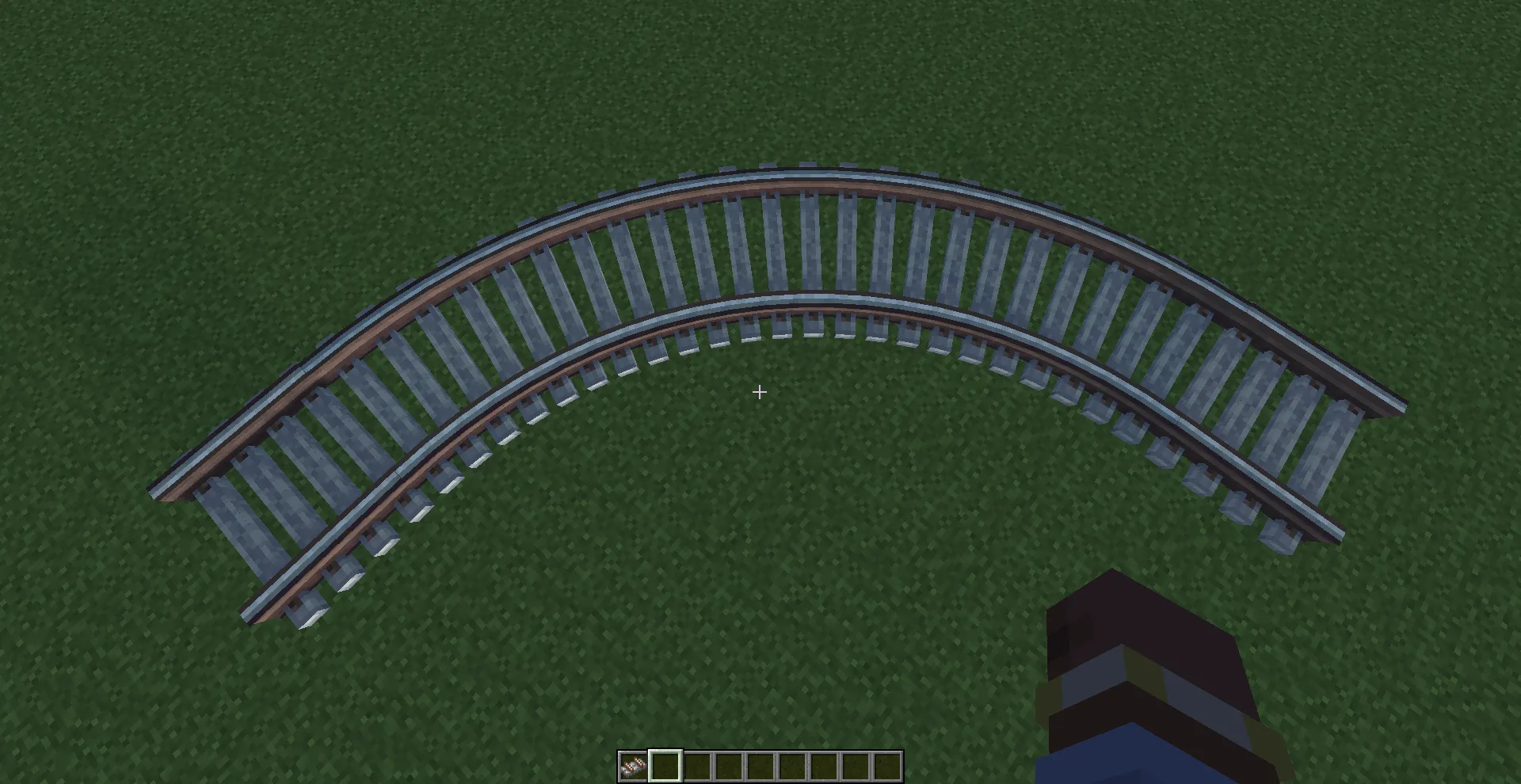

With this fix applied, we can reload the shaderpack and see that the tracks are now properly rendered !

Shadows

As we haven’t declared the clrwl_shadow program yet, Flywheel geometries are not currently rendered in the shadow pass. We’ll process as we did with clrwl_gbuffers: use shadow as the foundation and call clrwl_computeFragment.

The new clrwl_shadow.fsh:

#version 330 compatibility

uniform sampler2D gtexture;

in vec2 texcoord;
in vec4 glcolor;

layout(location = 0) out vec4 color;

void main() {
    color = texture(gtexture, texcoord) * glcolor;
    if(color.a < 0.1) {
        discard;
    }
    color = texture(gtexture, texcoord);
    vec2 lmcoord;
    float ao;
    vec4 overlayColor;

    clrwl_computeFragment(color, color, lmcoord, ao, overlayColor);
}

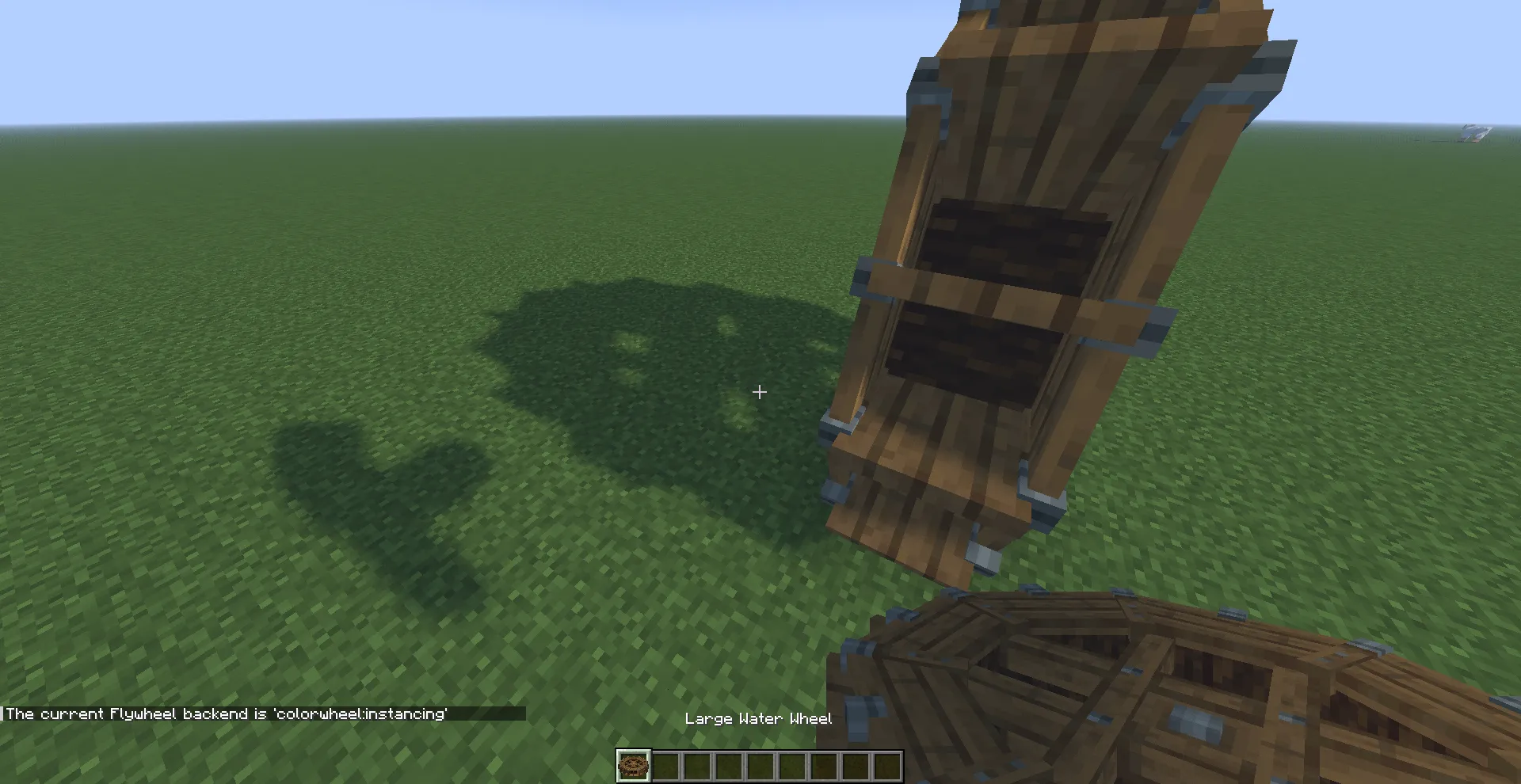

If we reload our shaderpack, we now have our shadows being rendered !

Tip

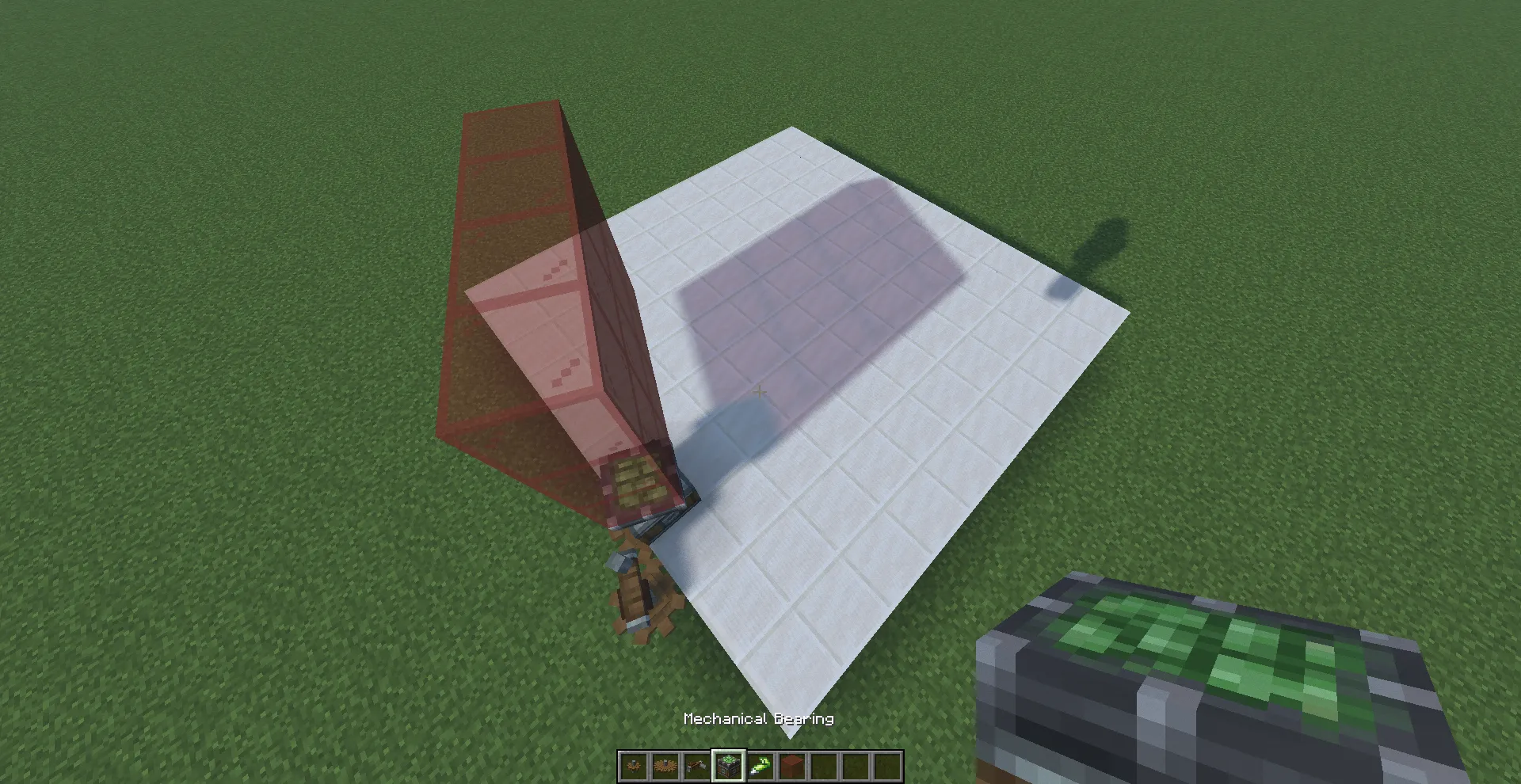

For non Create players, here’s how you can build a translucent contraption:

• Place two cogwheels upwards.
• Place a mechanical bearing on one of the cogwheel, and a hand crank on to top of the other.
• Place some stained glass on top of the mechanical bearing.
• With a super glue in hand: right click on one corner of the stained glass wall, and right click on the opposite corner.
• Look at the side of the mechanical bearing, hold right click and move your mouse to the right to select Only Place when Anchor Destroyed.
• Right click on the hand crank.

Stress test

You might wonder why all this effort is necessary? What are the real benefits of doing all of this?

Let’s run /fill ~ ~ ~ ~31 ~ ~31 create:water_wheel to spawn 1024 water wheels. With the colorwheel:instancing backend, everything runs smoothly. But if your run /flywheel backend flywheel:off, you might notice your computer suddenly getting very noisy.

For reference, on my Steam Deck, the performance dropped from an average of 45 fps to 0 fps, so that’s quite an improvement.

Going futher

We are now properly rendering opaque geometries, but Flywheel exposes more transparency modes.

Colorwheel provides more programs, one for each transparency mode. If the gbuffers program for a transparency mode doesn’t exist, clrwl_gbuffers will be used instead while retaining their default blending mode. Make sure that every transparency mode will be rendered properly (this is especially true for shaderpacks using a deferred pipeline).

Tip

As you can see, there’s not a huge difference between Colorwheel programs and existing programs. The easiest way to support Colorwheel is to use #define to set a flag, then #include an existing program containing #ifdefs that include the Colorwheel code when required. This allows you to keep Colorwheel shaders up to date with minimum effort.
